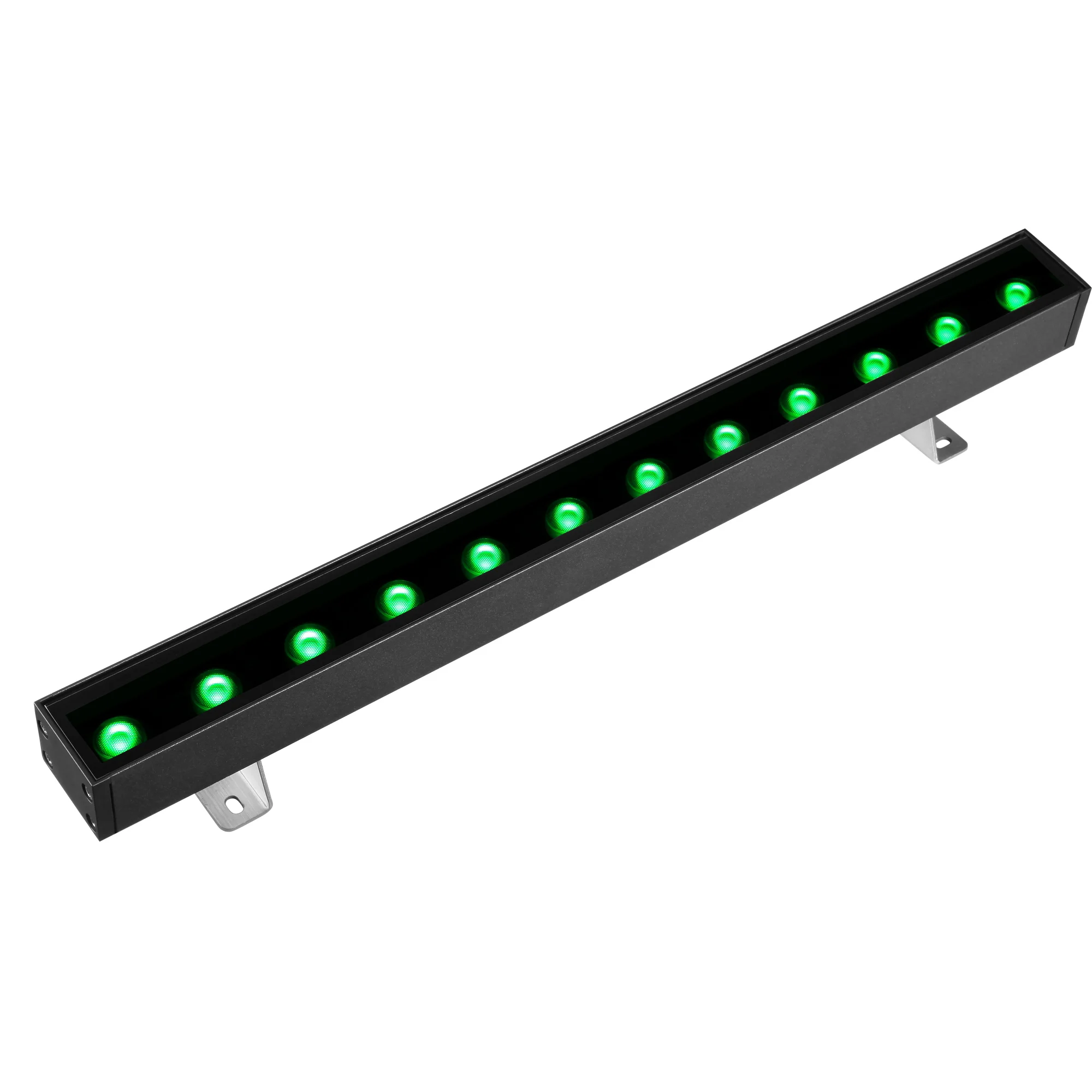

Facade Outdoor 50cm IP66 12 Pieces LEDs 3 In 1 25W Led Mini Linear Wall Washer RGB Washer Outside

  • 1 - 99 Pieces
    $39.00
  • >=100 Pieces
    $37.00
Emitting Color:
Cold White Red Green Warm White White RGB Blue
Wattage:
25W
Color:
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 9 Negotiable
Customization:
Customized logo (Min. Order: 300 Pieces)
Customized packaging (Min. Order: 300 Pieces)

More

Graphic customization (Min. Order: 300 Pieces) Less
Samples:
$53.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Wall Washers
Lighting solutions service:
Project Installation
Luminous Efficacy(lm/w):
80
Input Voltage(V):
DC12V , DC24V
CRI (Ra>):
80
Warranty(Year):
3
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP66
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
LT-G500-RGB-25W
Application:
LANDSCAPE
Product Name:
25W Led Mini Linear Wall Washer RGB Washer Outside
Power Range:
25W-50W
Voltage:
DC12V , DC24V
LED Chip:
RGB, RGBW, 2700-6500K, Single Color
Housing Color:
Black
Water Proof:
IP66
Control Method:
DMX512 , Wireless , Wifi Control
Beam Angle:
10°,15°,25°,30°,40°,60°,90°,10*30°,10*45°,10*65°,10*70°,20*65°
Led Driver:
External
Size (mm):
L500*W46*H80
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
EPE;Cartons.
Port
ShenZhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 9 To be negotiated

Advantages of working with us:

1. Price: We are factory, able to offer better price. 2. Good quality: We are experienced in quality control; Through CE, RoHS certification. 3. On time delivery: Delivery the goods on time; 4. Professional seller: Good communication in patient and well know our products; 5. MOQ: Depent on different lights. 6. ODM&OEM: Good ODM&OEM and custom engineering services. 6.24 hours of products and services hot line, to provide customers with fast problem solution 7. Excellent warranty services: Provide free warranty service for three years, send spare parts for free and provide professional technical support.
Specification

Facade Outdoor 50cm IP66 12 Pieces LEDs 3 In 1 25W Led Mini Linear Wall Washer RGB Washer Outside


1,Patented private design , RGB&RGBW&Single colors available.
2,Luminaire lengths are available in 500mm( 1.64ft) and 1000mm(3.2ft).
3,Beam angles. choose from narrow (10° ,10 by 60°),medium (40,20° x 60°),or wide (60° ,100°) .
4,Top quality LED Lens, top performance for lighting distribution.
5, IP66 design, Structural waterproof + glue waterproof double protection.
25W RGB Linear Wall Washer
Power
25W
Voltage
DC12V , DC24V
Led Color
RGB,RGBW,2700-6500k,Single Color
IP Rating
IP66
Working Temp
-20~ +40℃
Housing Color
Black
Warranty
3 Years

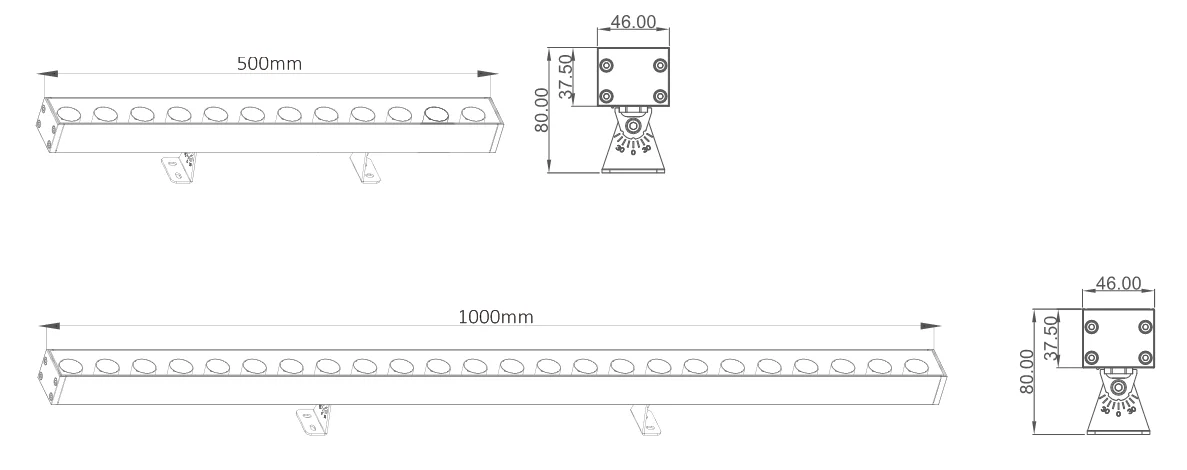

Size (mm)
L500 ×W46×H80
Model No.
Power
LED Chip
Control Method
Voltage
Size(mm)
Color
LT-G1000-RGBW-50W
50W

RGBW










External










DC24V
L1000 ×W46×H80










Black
LT-G500-RGBW-25W
25W
L500 ×W46×H80

LT-G1000-RGB-50W
50W

RGB
L1000 ×W46×H80

LT-G500-RGB-25W
25W
L500 ×W46×H80

LT-G1000-50W
50W

2700-6500
L1000 ×W46×H80

LT-G500-25W
25W
L500 ×W46×H80

LT-G1000-50W-R


50W
Red
L1000 ×W46×H80

LT-G1000-50W-G
Green
L1000 ×W46×H80

LT-G1000-50W-B
Blue
L1000 ×W46×H80

LT-G500-25W-R


50W
Red
L500 ×W46×H80

LT-G500-25W-G
Green
L500 ×W46×H80

LT-G500-25W-B
Blue
L500 ×W46×H80

Product Description

Facade Outdoor 50cm IP66 12 Pieces LEDs 3 In 1 25W Led Mini Linear Wall Washer RGB Washer Outside

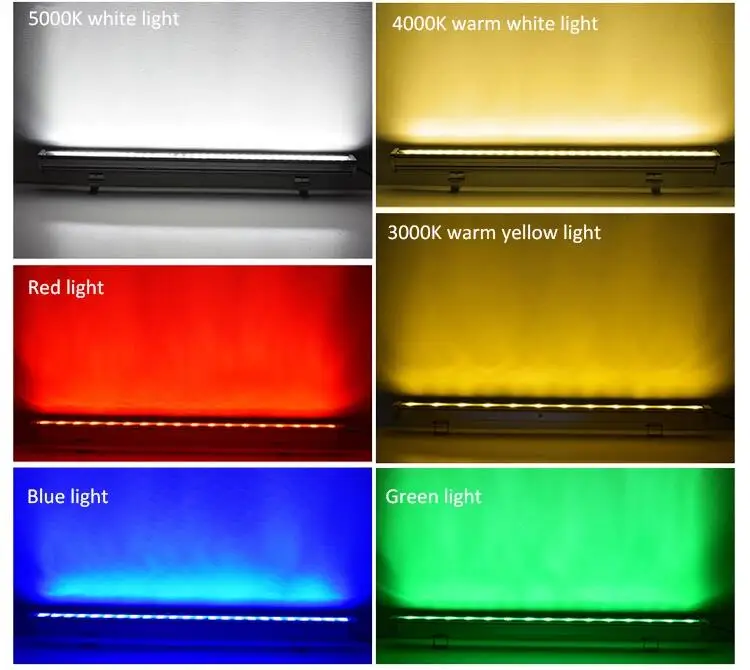

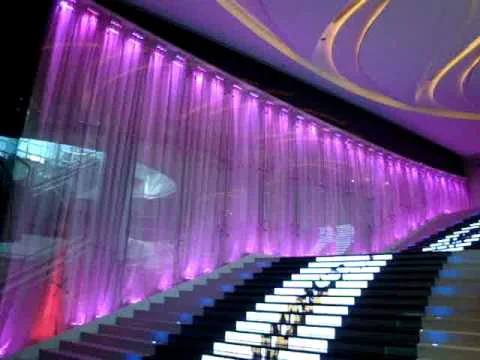

LED wall washer light is also called LED flood light, as well named LED linear light as it is linear type. Its working effect is that the light is washing the wall like running water, mainly used in architectural decoration lighting and setting the contours of the building. It can make single color, 7 colors, RGB 3in1 and RGBW 4 in 1 full colors LED. There are various sizes for different application requirements. The light is widely used on account of its energy-saving, high light efficiency, rich colors and long lifespan.

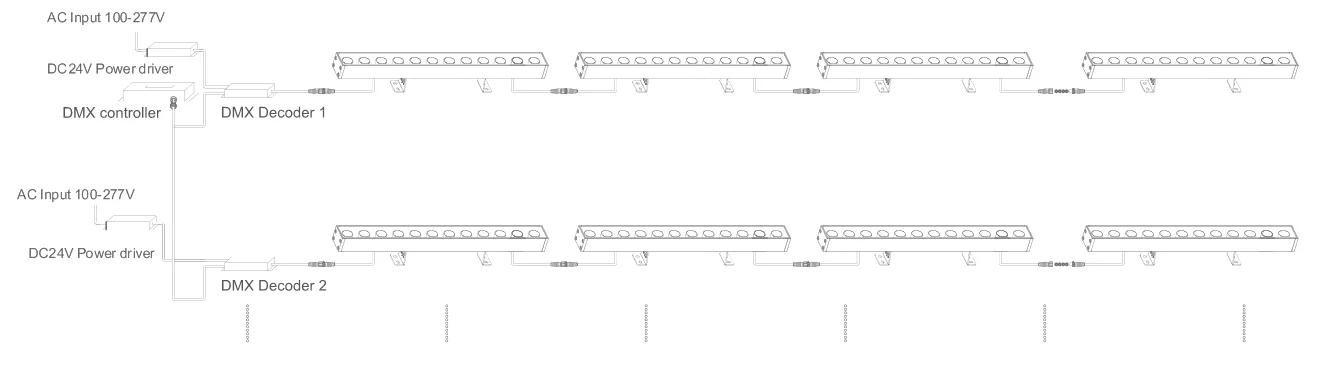

Wire Diagram

♦ External control, single red, green, blue color available ♦ DMX/console control: driver with RGB DMX signal, set up lamp IP address codes for the DMX control mode. IP address can be made by either seller or buyer.

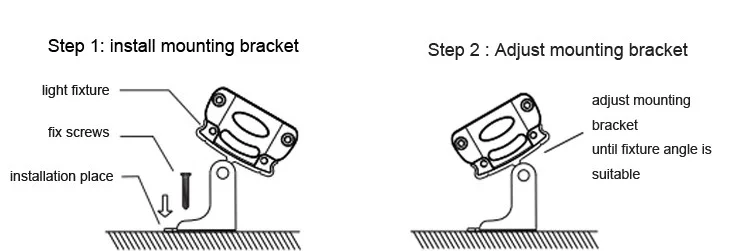

Installation Process

Facade Outdoor 50cm IP66 12 Pieces LEDs 3 In 1 25W Led Mini Linear Wall Washer RGB Washer Outside

1,Please hire a professional electrician to install the light to avoid accident.

2,Make sure the supply voltage is right. (A wrong operating voltage can cause permanent damage of the light.)
3.Avoid  installing in a place with heat source,hot vapour or corrosive gases,otherwise it will reduce the service life.
4.When the light is on,do not touch the shell directly in case of being scalded.
Any question during installation and using,please consult a professional electrician.

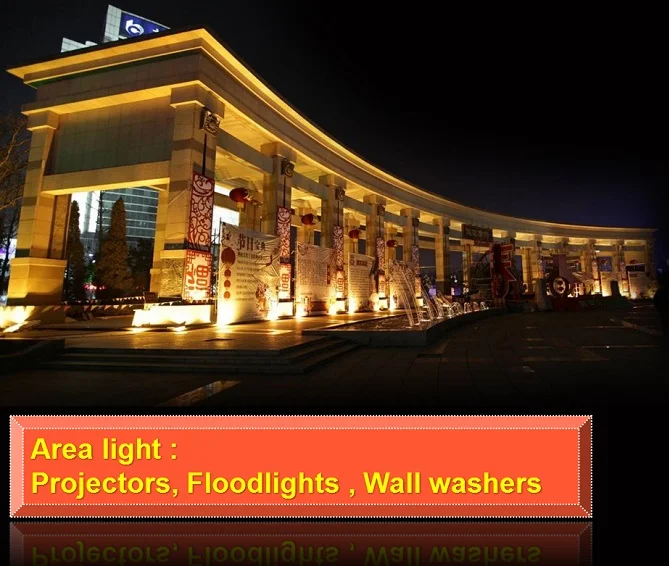

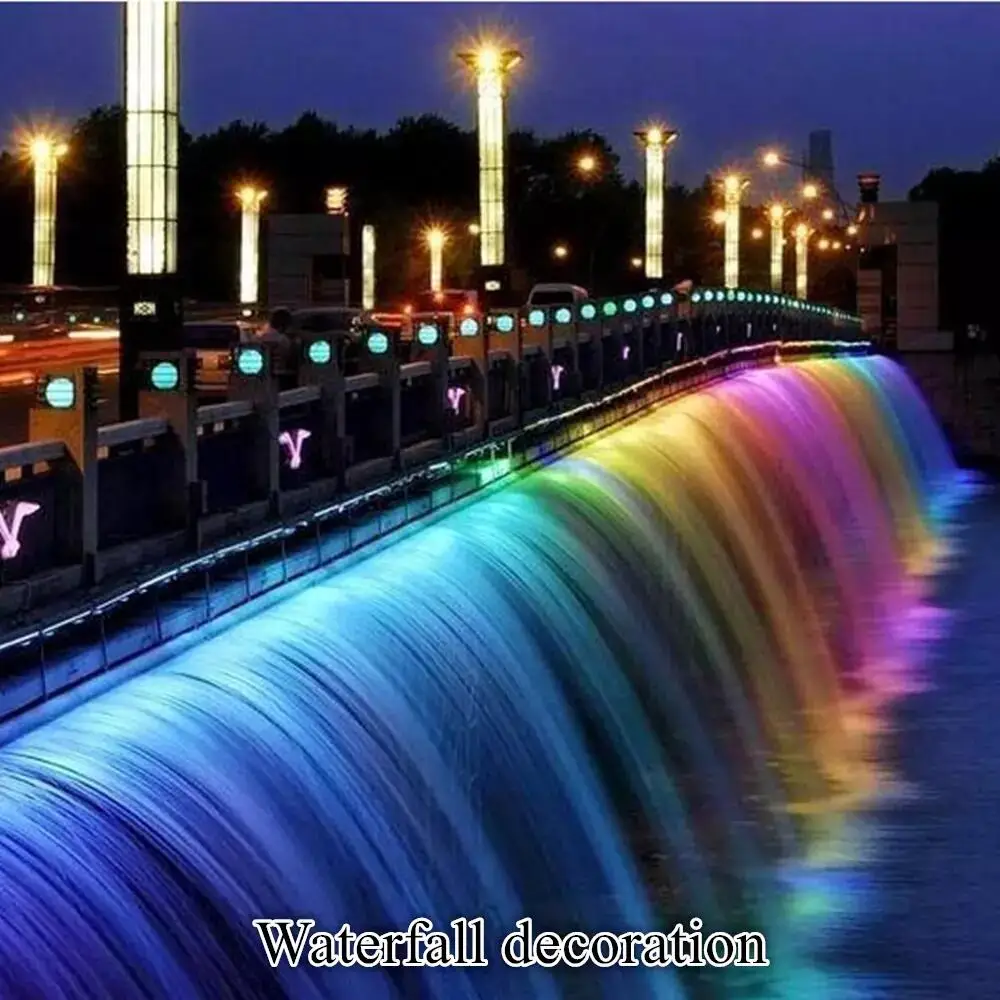

Applications

Facade Outdoor 50cm IP66 12 Pieces LEDs 3 In 1 25W Led Mini Linear Wall Washer RGB Washer Outside

1, Trade Show and Exhibition Displays.

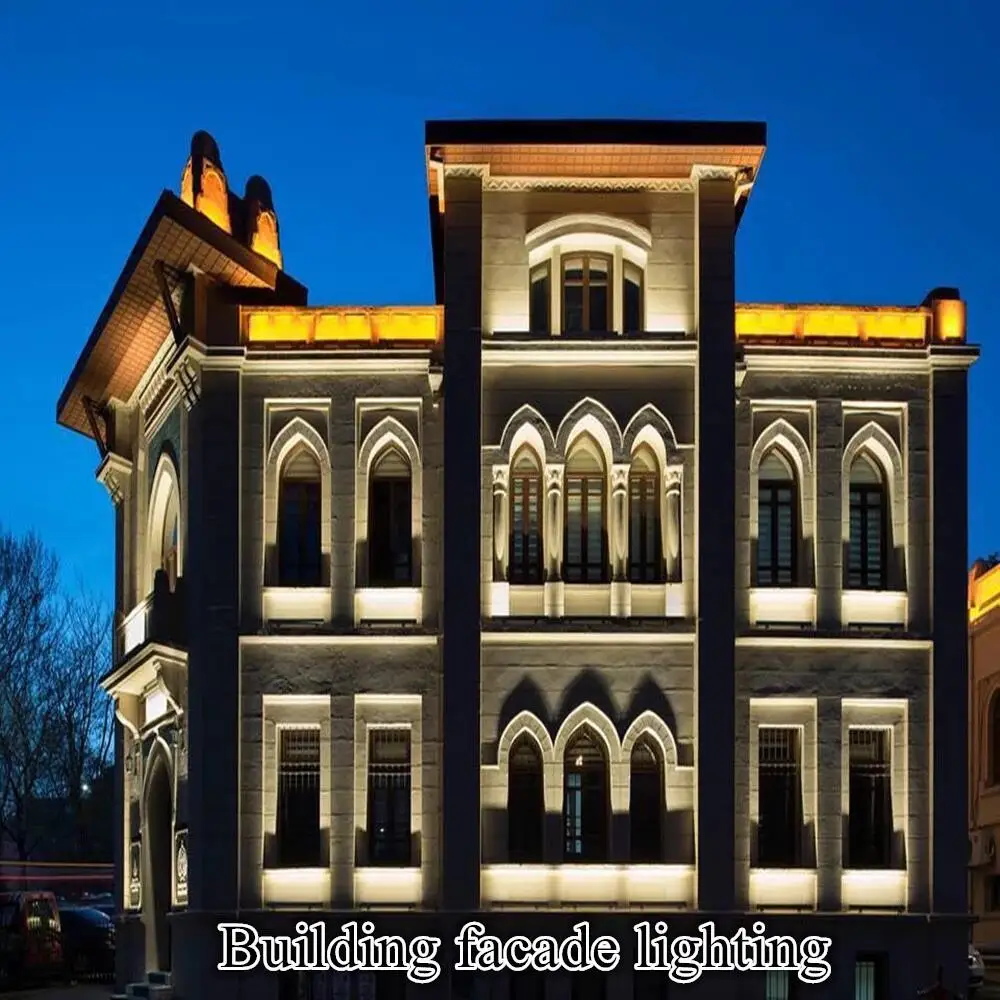

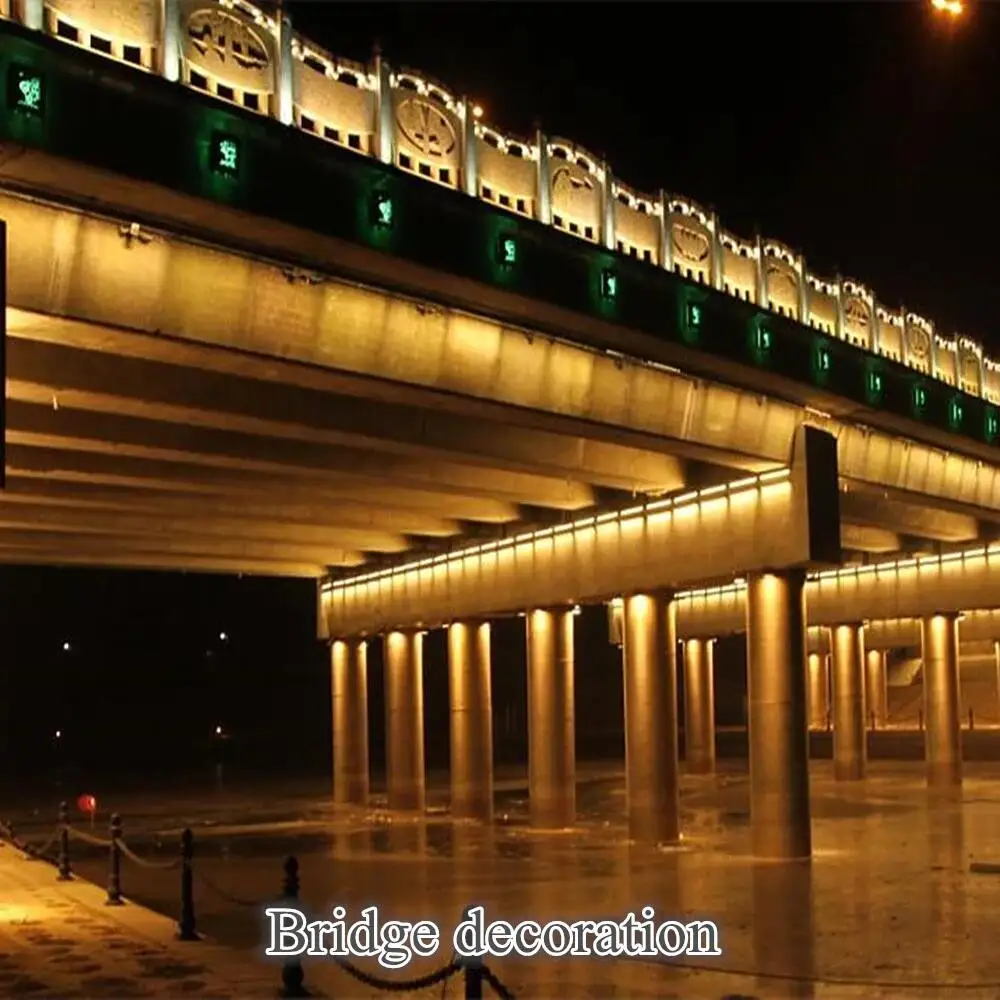

2, Architectural lighting for canopies, corridors, archways, windows.
3,Downlighting or uplighting for wall wash applications

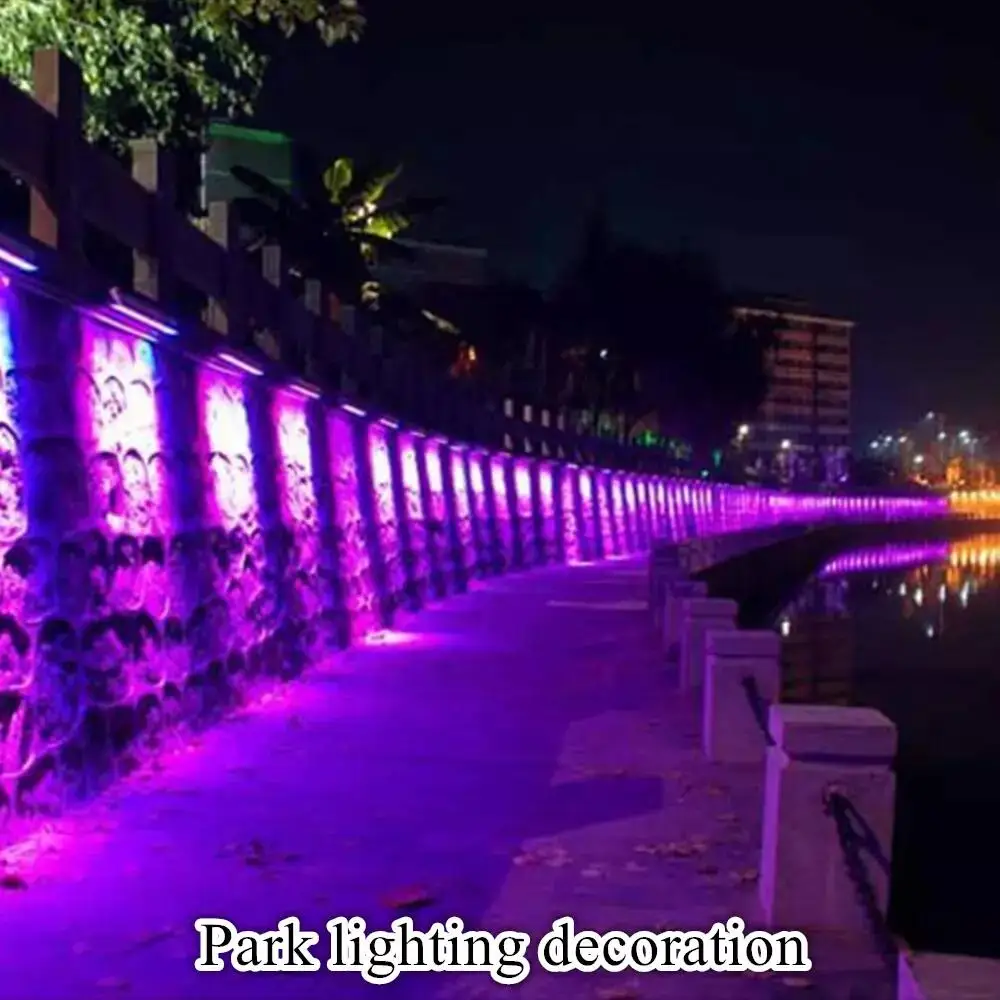

4,Commercial & Residential Landscape lighting.
5,Statue and sculpture lighting illumination.
